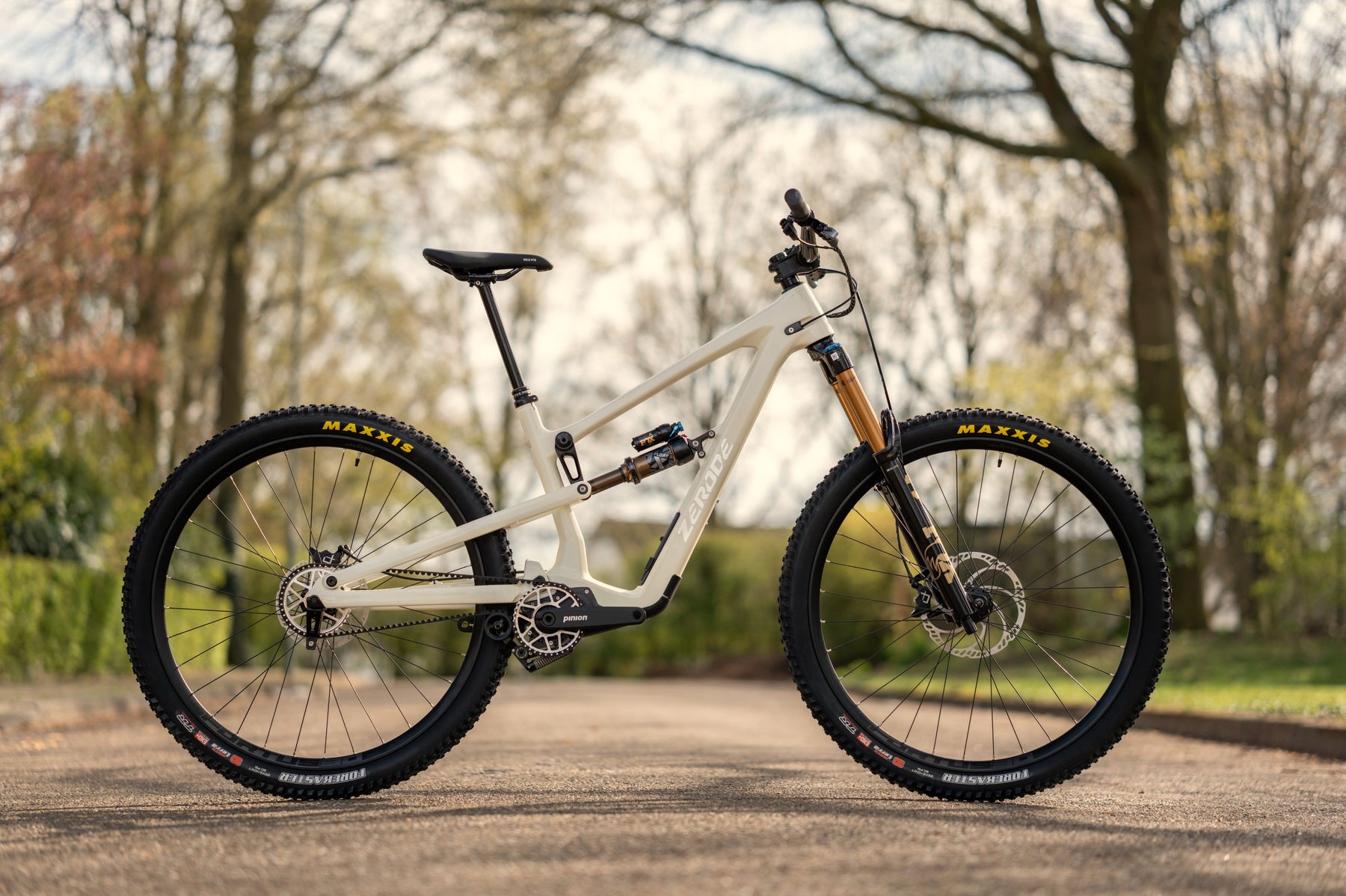

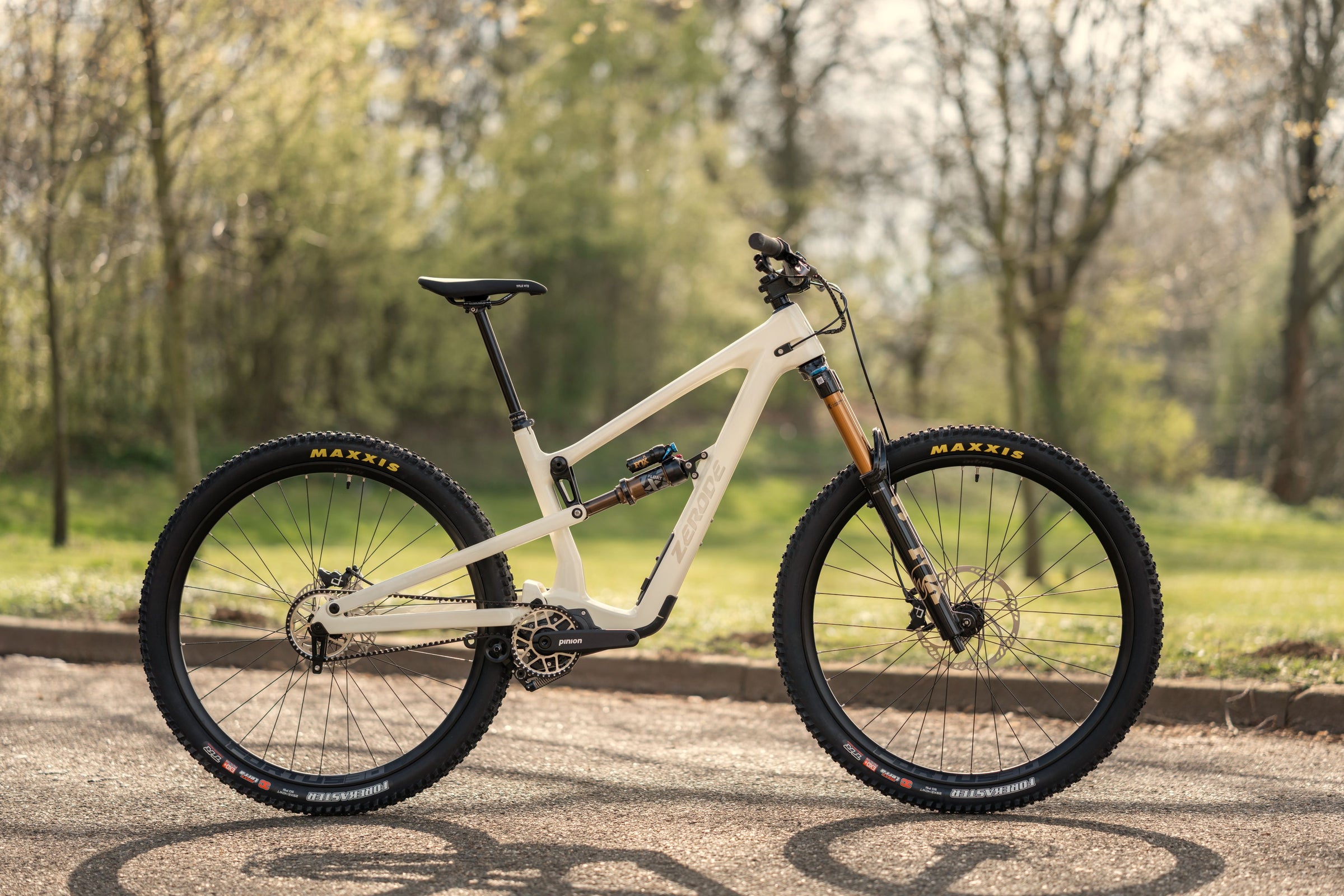

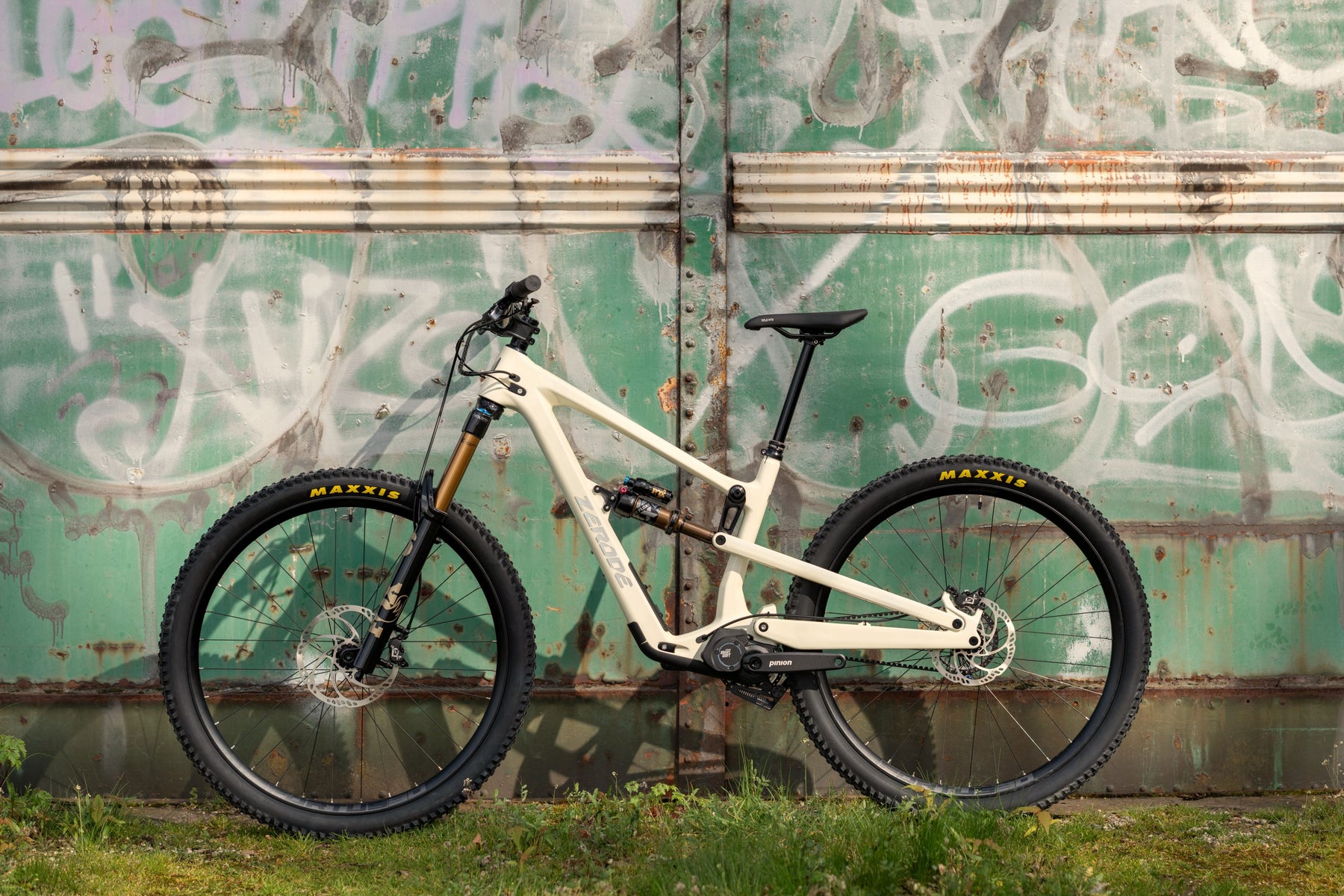

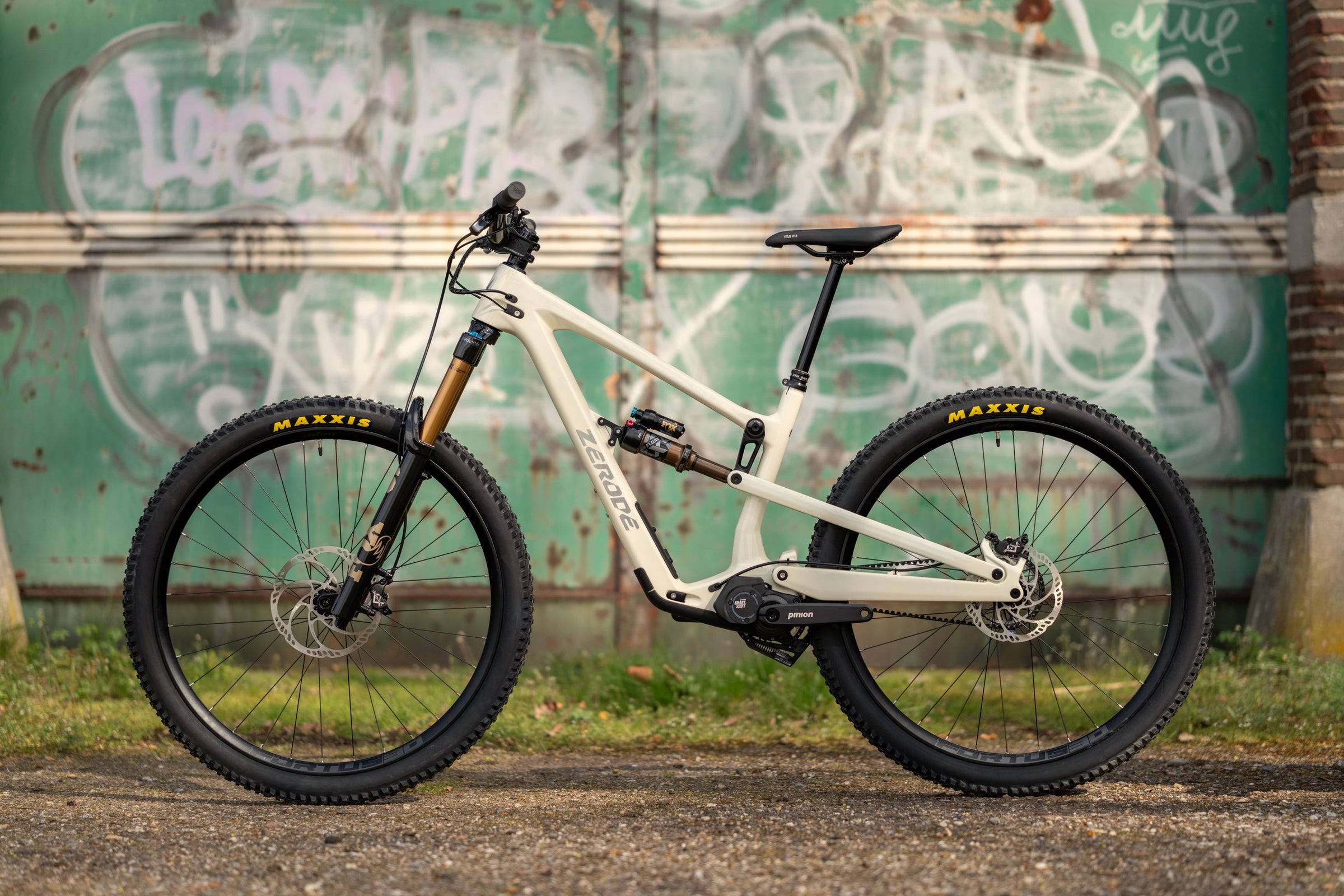

Shadow Trail

Travel: 150 mm front - 140 mm rear
Wheel size: Full 29 or Mullet
Configure your Shadow exactly how you want it, from frame-only to a full build that fits your specific wishes. Or just opt for our standard configuration that guarantees a superb ride!

Lead times:

Medium and Large: 2 - 5 weeks, depending on configuration.

XL: 11 weeks

Small: Not available yet

€7.525,00
/
Tax included.

See our sizing chart here.

SMALL

Under construction

MEDIUM

  • Reach: 466 mm
  • Stack: 624 mm
  • ST Angle: 79°
  • HT Angle: 64,5°
  • ST length: 420 mm
  • HT Length: 110 mm
  • Top tube effective: 586 mm
  • Front-center: 795 mm
  • CS Length: 435 mm
  • BB Height: 338 mm
  • BB Drop: Full 29'er: 38 mm. Mullet: 27,5 mm
  • Wheelbase: 1228 mm
  • Standover: 695 mm

LARGE

  • Reach: 495 mm
  • Stack: 633 mm
  • ST Angle: 79°
  • HT Angle: 64,5°
  • ST length: 450 mm
  • HT Length: 120 mm
  • Top tube effective: 617 mm
  • Front-center: 830 mm
  • CS Length: 450 mm
  • BB Height: 338 mm
  • BB Drop: Full 29'er: 38 mm. Mullet: 27,5 mm
  • Wheelbase: 1278 mm
  • Standover: 698 mm

EXTRA LARGE

  • Reach: 520 mm
  • Stack: 641 mm
  • ST Angle: 79°
  • HT Angle: 64,5°
  • ST length: 460 mm
  • HT Length: 130 mm
  • Top tube effective: 644 mm
  • Front-center: 859 mm
  • CS Length: 450 mm
  • BB Height: 338 mm
  • BB Drop: Full 29'er: 38 mm. Mullet: 27,5 mm
  • Wheelbase: 1306 mm
  • Standover: 698 mm

Weight of a full build: 15 - 16 kg.

FRAME MATERIAL: Carbon Fibre. Internal cable routing and internal storage. Interchangeable front shock mount for both full 29 and mullet

TRAVEL: 140 mm

REAR SHOCK: 230 mm eye to eye x 60 mm stroke, mounting hardware: Top: 20 mm width x 8 mm bore. Bottom: 30 mm width x 8 mm bore.

HEADTUBE: 44 mm top/ 56 mm bottom

BRAKE MOUNT: 180 mm PM

SEATPOST: 31.6 mm inner (seatpost), 34.9 mm outer (clamp)

DRIVE TRAIN: Pinion C.Line Gearbox

REAR HUB: 148 mm x 12 mm, single speed compatible

WEIGHT: 2800 grams (size medium)

WARRANTY: Lifetime (first owner)

Free pick up option is available at our European site in Sittard (NL).

Shipping/ packaging rates calculated at checkout.

That feeling your bike can handle anything. The efficiency uphill, lightweight, a good climbing position. The feeling that same bike actually rivals an enduro bike in the descent. Robust, playful, and then that superb suspension performance you expect from a Zerode. That is what we did it all for.

The Shadow builds on nearly two decades of experience with gearbox-driven trail and enduro bikes, driven by low unsprung mass, silence, simplicity and low maintenance after riding. The updated geometry and kinematic make it feel composed and intuitive on any terrain, from technical climbs to demanding descents. This is the bike you want to bring on long epic tours.

wide hubs

Wider flange spacing means your wheel is ultra stiff. It also means you can build up lighter wheels.

world renowned zerode suspension

It’s no lie. We are renowned for the suspension performance of our bikes.

Full 29 AND Mullet

With the included interchangeable front shock mount, the Shadow gives you the option to switch between a full 29 and mullet whenever you want.

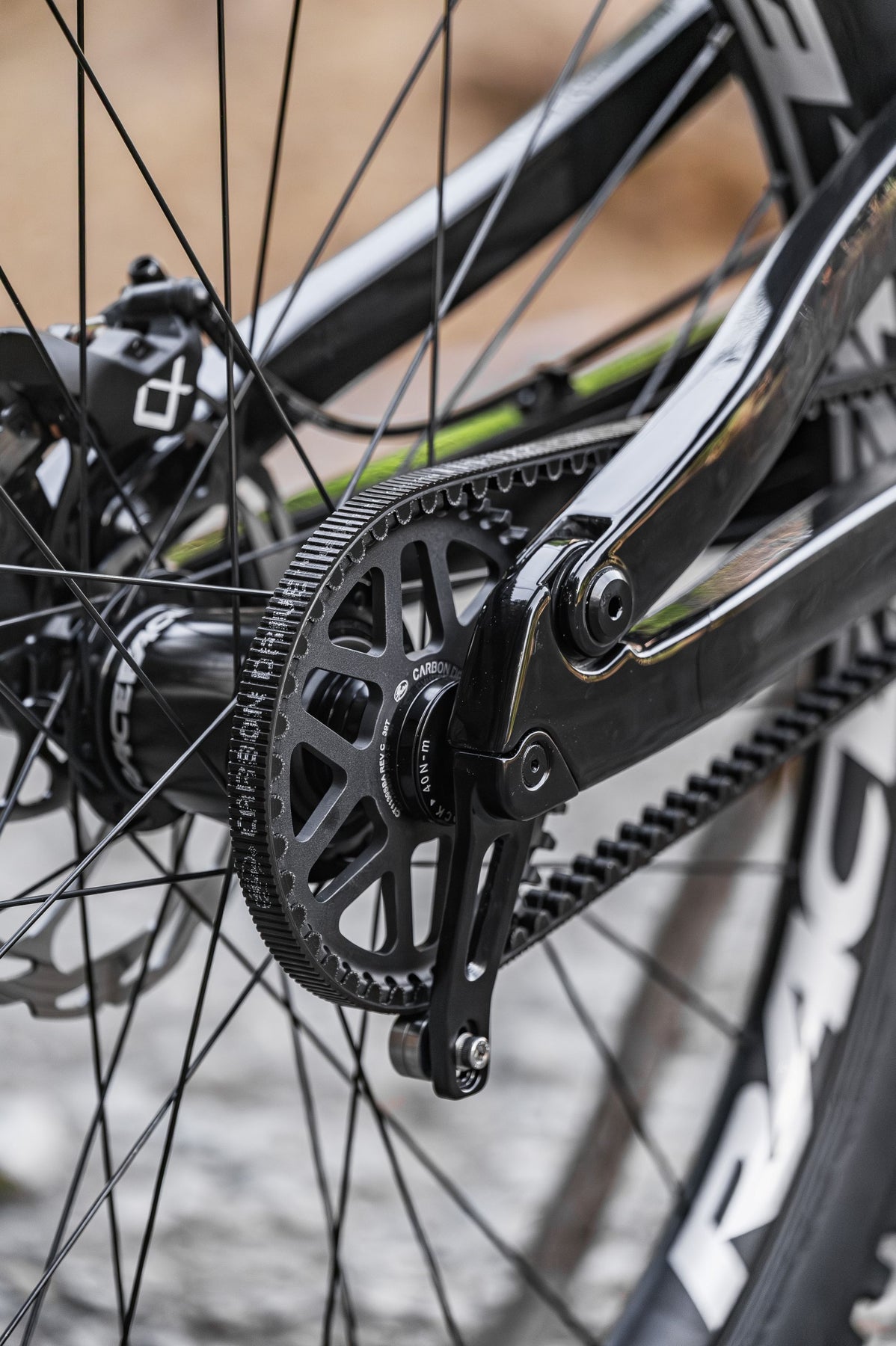

belt driven

Unchain your adventure. We partnered with Gates - the global leader in belt drive technologies, offering grease-free, ultra quiet, low maintenance and hassle-free ownership. Leave the chain tool at home and join the revolution.

simple

There’s no dinner plate sized cassettes or fragile derailleurs to snap off. It’s just simple, durable and reliable.

gearbox driven

At the heart of our bikes is the Pinion Gearbox. Instantaneous shifting, low maintenance and improved traction are just a few of the benefits it provides.
