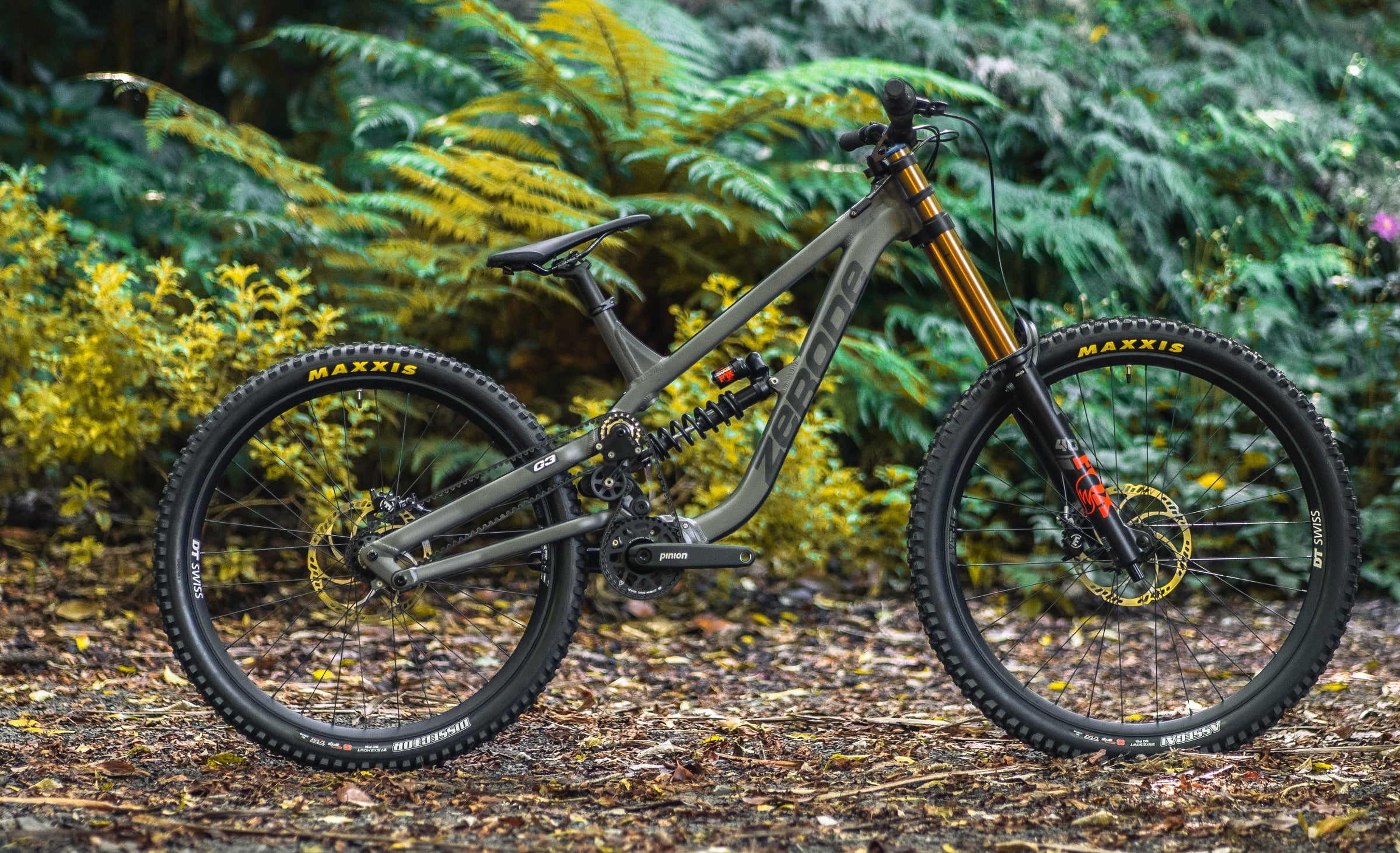

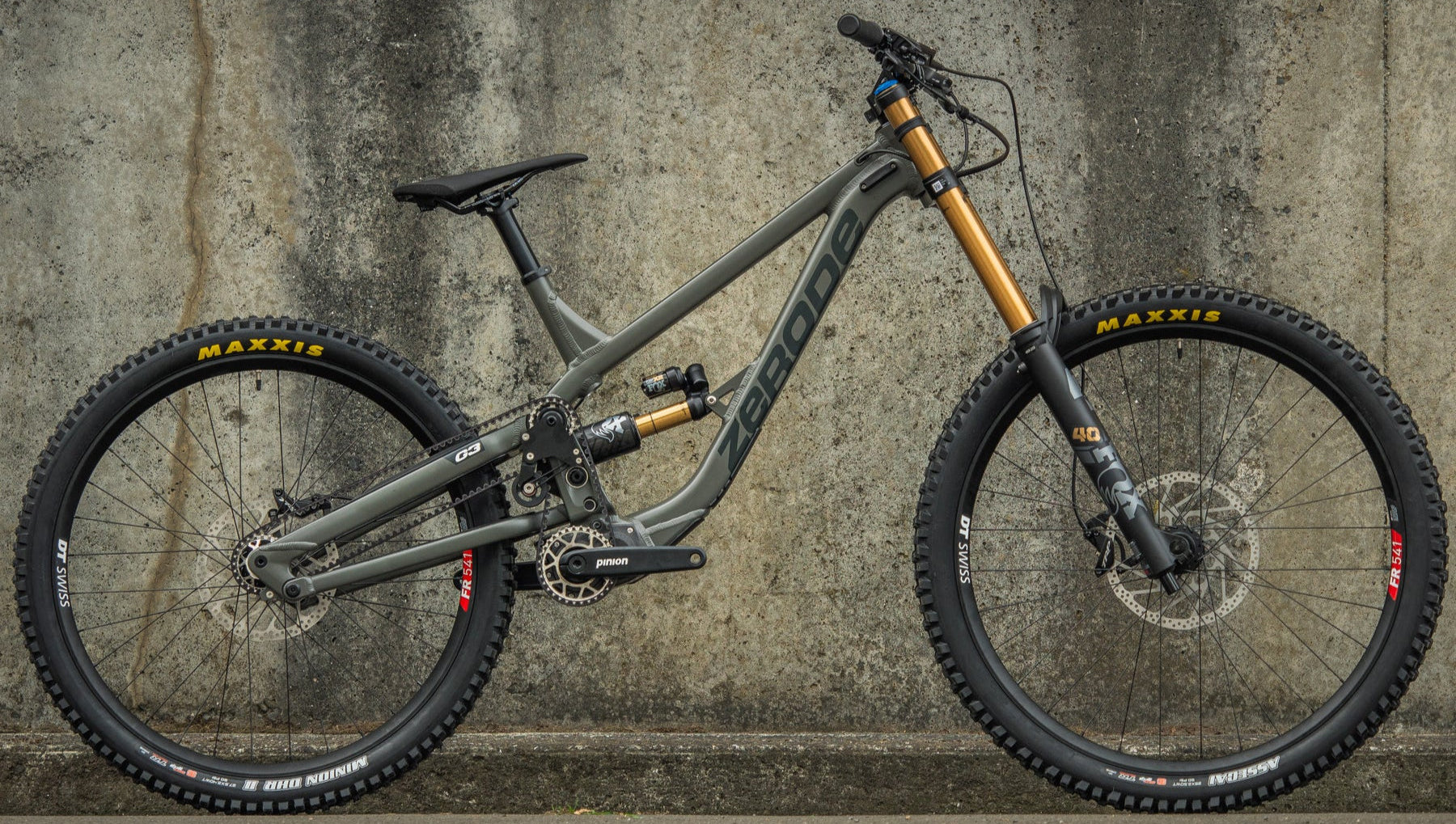

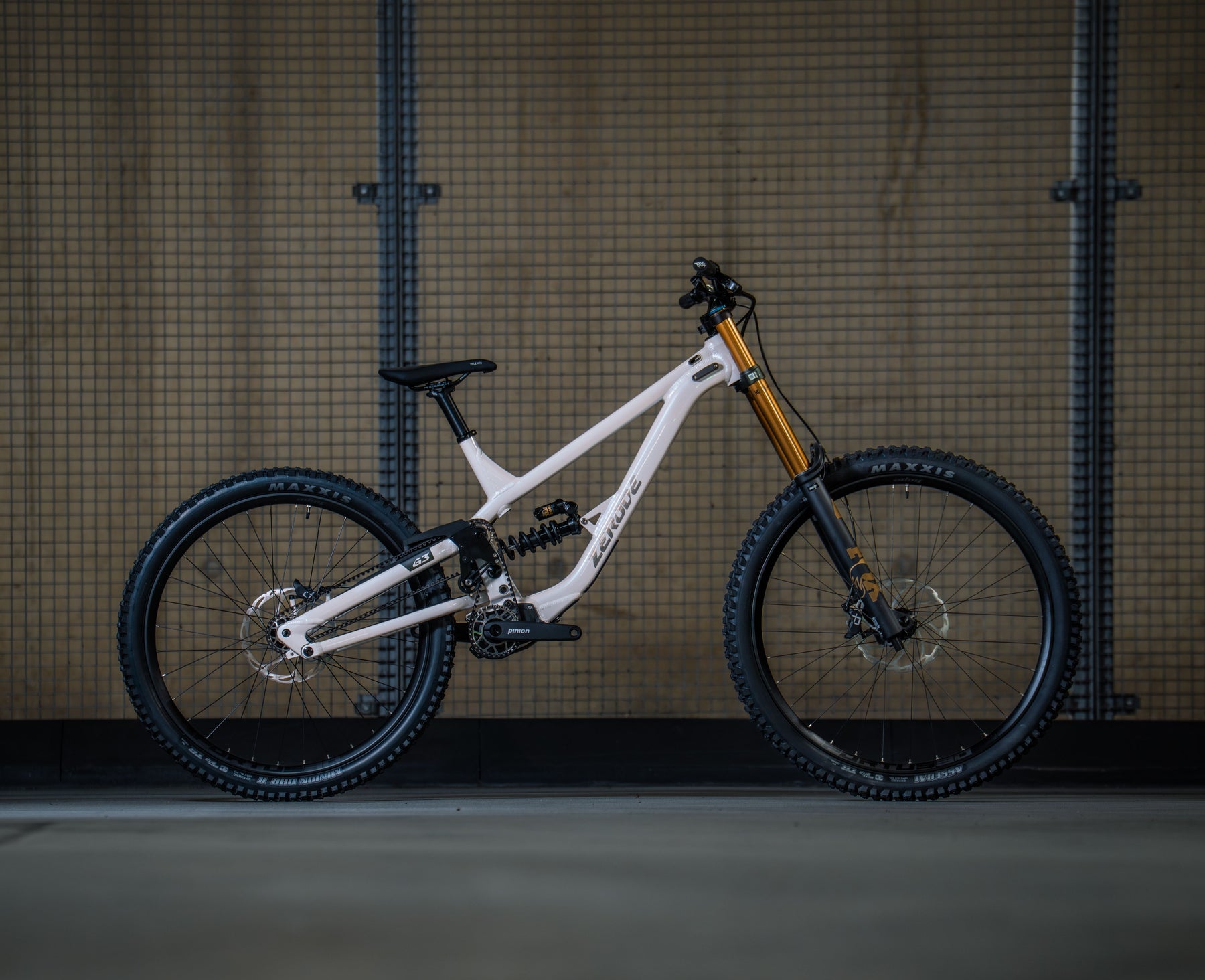

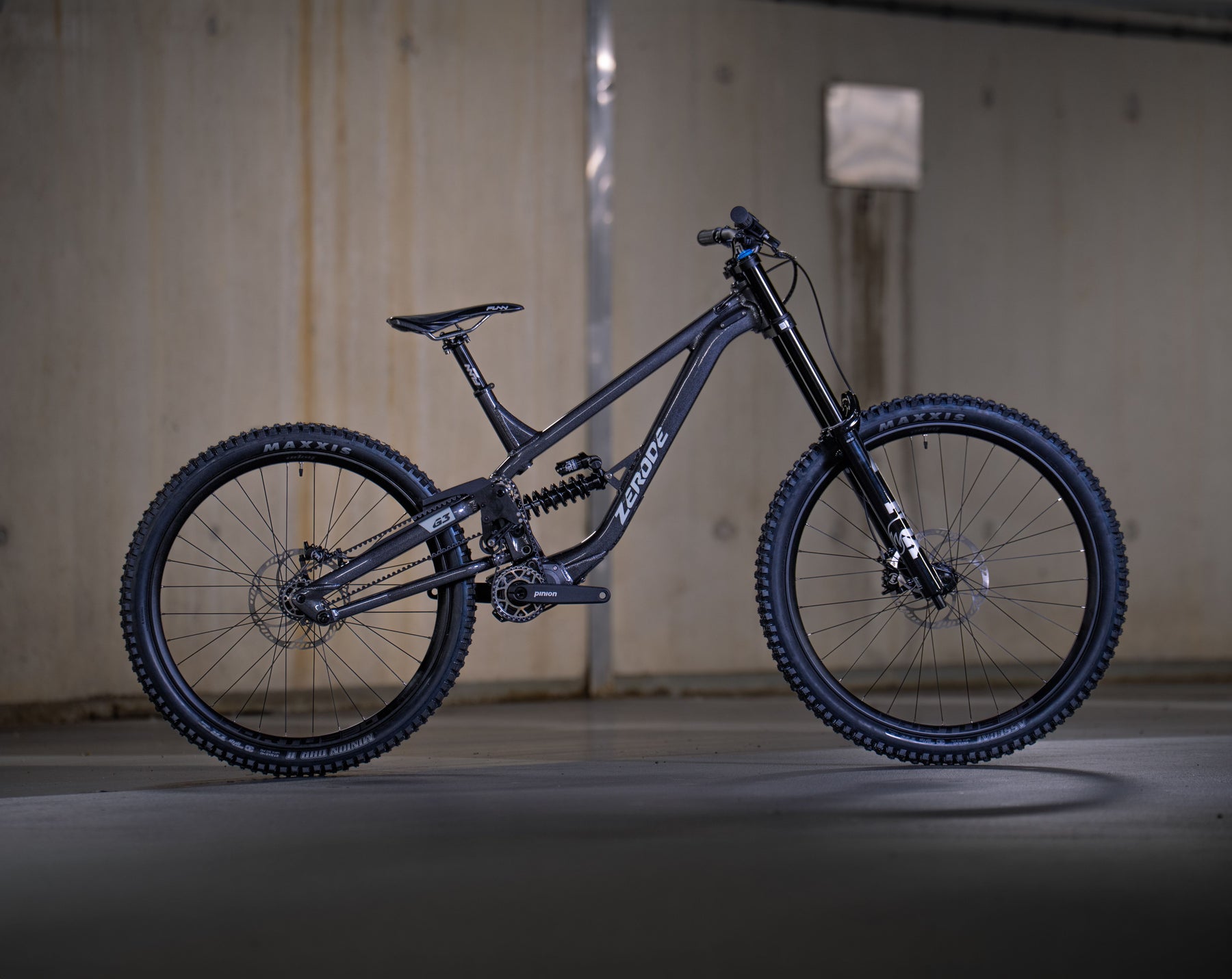

Name: G3 DOWNHILL
Brand: Zerode Bikes
Price: 4950.0 EUR
Availability: InStock

29 inch front / 27.5 rear wheel - 203 mm front / 200 mm rear travel

€ 4950.- Frame + shock + full drive train (Origin build)

€ 6775.- Origin build + Fox 40 Factory kashima fork

€ 8295.- Deluxe build

Drawing from the years of research, development and learnings from the iterations of the G1 and G2 and our enduro riding platforms, the G3 represents the embodiment of our origins and the reason the company started - removing complexity from the riding experience and using simple design and the unequivocal principles of physics to improve suspension performance through the gnarliest of terrain. The G3 comes in mullet set up and combines a high pivot design with a belt driven gearbox.

The G3 comes in 3 builds

Origin: frame, rear shock, 6spd gearbox, drivetrain and shifter.
Origin + Fox 40 Factory kashima fork
Full build

Specifications:

Frame: Zerode G3 high pivot alloy 200 mm travel
Gearbox: Pinion C1.6 - 6 speed.

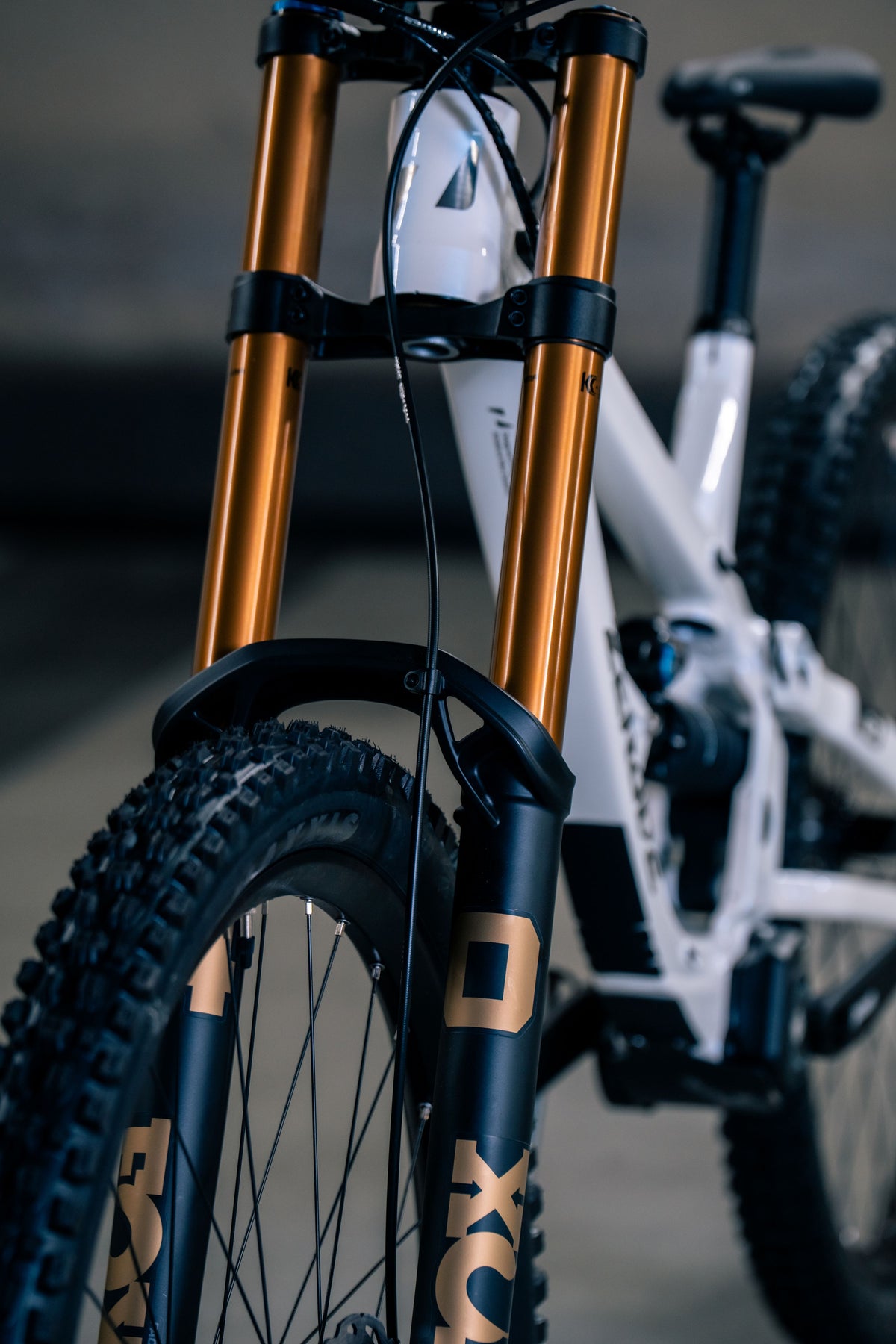

Fork: Fox 40 Factory kashima 29 203 mm travel

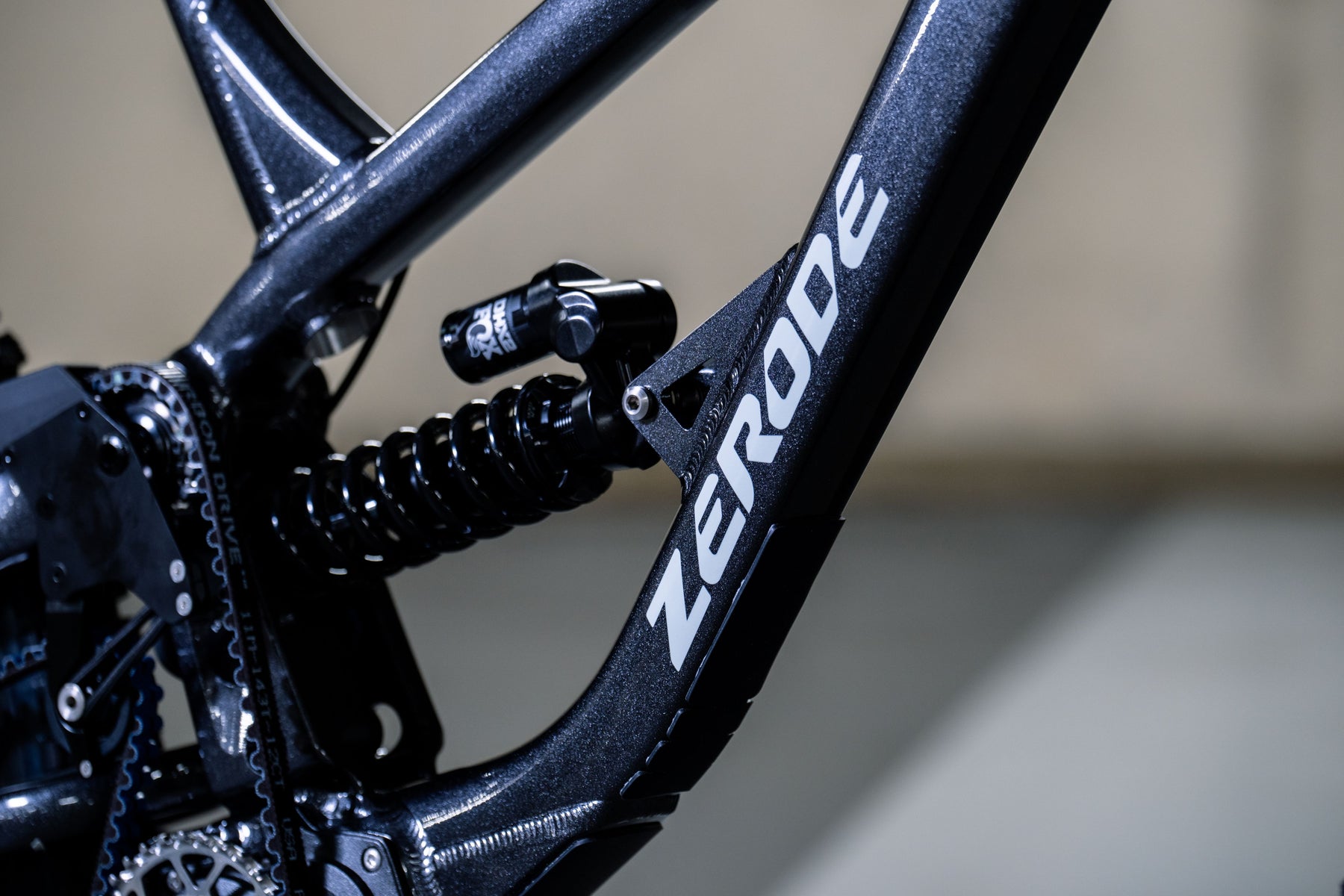

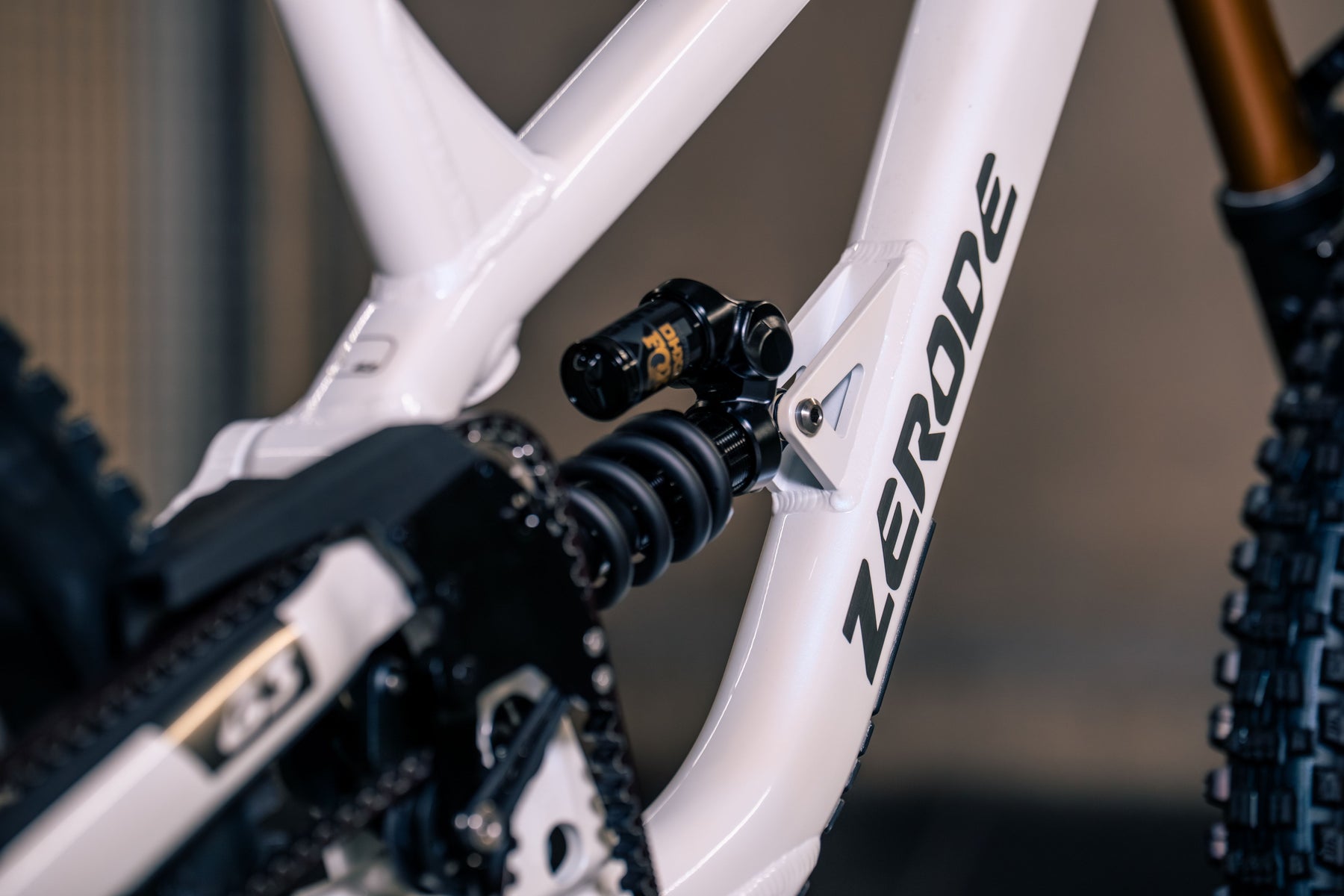

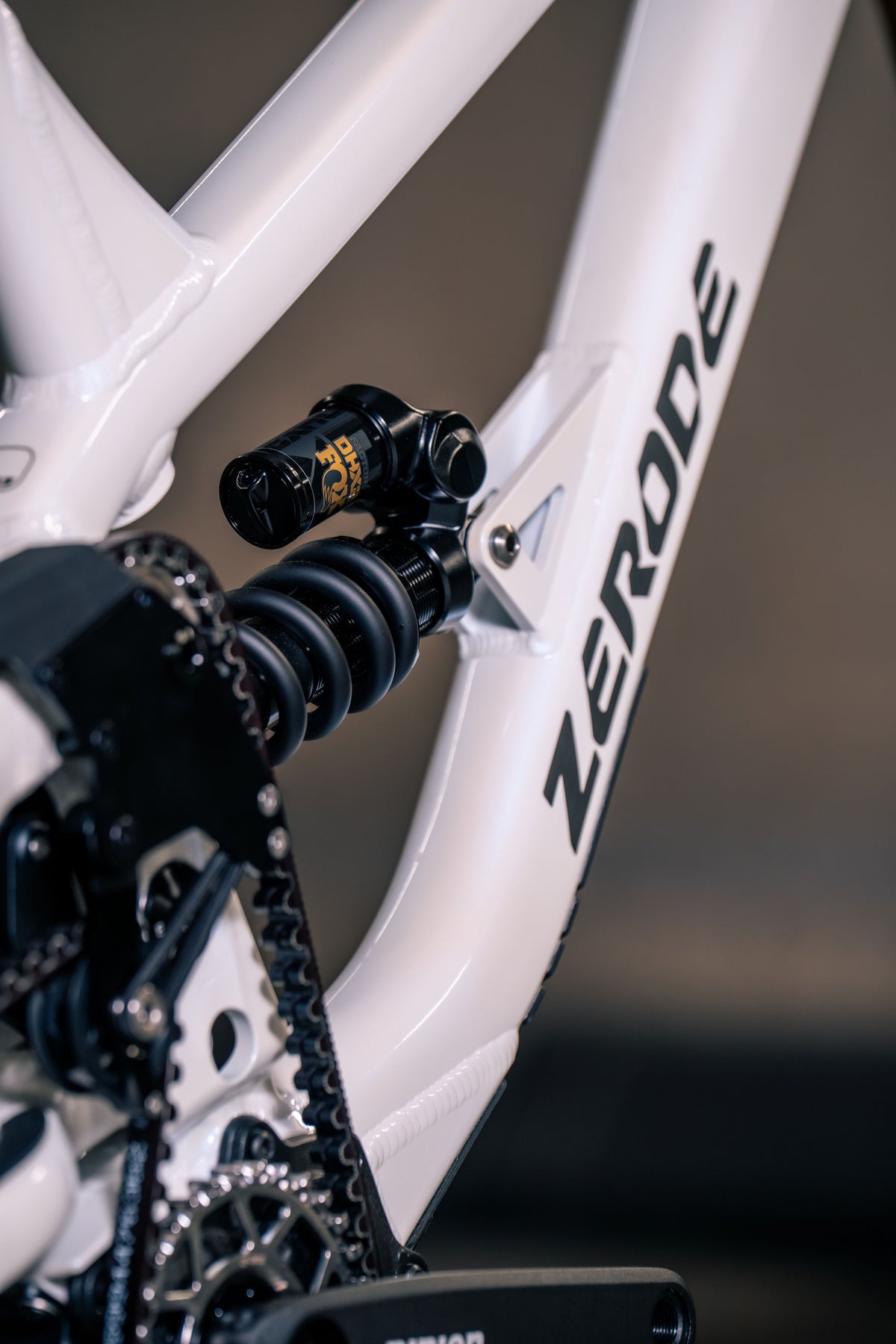

Shock: Fox DHX2 250x75
Rims: Hope Fortus 30
Hubs: Hope Pro 5, 142 mm single speed rear hub
Tyres: Maxxis. Front Assegai, Rear DHR ll
Brakes: Hayes Dominion A4
Rotors: Front: 220 mm, Rear: 203 mm
Bar: Title 35 25 mm rise black
Stem: Title DM 35 black
Saddle: Title JS1
Seatpost: Title 31.6
Headset: Cane Creek zs56/zs56

Short

Reach: 435 mm
ST Angle: 70°
HT Angle: 63°
HT Length: 105 mm
CS Length: 440 mm
BB Height: 350 mm
BB Drop: 4 mm
Wheelbase 1255 mm

Medium

Reach: 460 mm
ST Angle: 70°
HT Angle: 63°
HT Length: 105 mm
CS Length: 440 mm
BB Height: 350 mm
BB Drop: 4 mm
Wheelbase 1280 mm

Long

Reach: 485 mm
ST Angle: 70°
HT Angle: 63°
HT Length: 105 mm
CS Length: 440 mm
BB Height: 350 mm
BB Drop: 4 mm
Wheelbase 1305 mm

- Red

- Grey

- Raw

FRAME MATERIAL: Aluminium 6066T6
TRAVEL: 200 mm
REAR SHOCK: 250 mm eye to eye x 75 mm stroke, mounting hardware: 20 mm width x 8 mm bore
HEADSET: 56 mm top/ bottom
BRAKE MOUNT: 203 mm PM
SEATPOST: 31.6 mm inner (seatpost), 34.9 mm outer (clamp)
DRIVE TRAIN: Pinion C.Line Gearbox
REAR HUB: 142 mm x 12 mm single speed
WEIGHT: 4495 grams (size medium incl. idler pulley and belt tensioner)

Current leadtime for the G3 is June 2024.

Free pick up option is available at our EU site in Sittard (NL).

Shipping rates Europe:

Full bike build to EU: € 69.90

Origin/ frame to EU: € 39.90

Full bike build outside EU: € 99.90

Origin/ frame outside EU: € 69.90

Product prices are including VAT. European NON EU customers will automatically get an invoice without VAT or VAT will be refunded.

€4.950,00

Tax included.

[{"id":46984115847508,"title":"Short \/ Raw \/ Origin","option1":"Short","option2":"Raw","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Raw \/ Origin","public_title":"Short \/ Raw \/ Origin","options":["Short","Raw","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984115880276,"title":"Short \/ Raw \/ Origin + Fork","option1":"Short","option2":"Raw","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Raw \/ Origin + Fork","public_title":"Short \/ Raw \/ Origin + Fork","options":["Short","Raw","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984115913044,"title":"Short \/ Raw \/ Full build","option1":"Short","option2":"Raw","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Raw \/ Full build","public_title":"Short \/ Raw \/ Full build","options":["Short","Raw","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984115945812,"title":"Short \/ Red \/ Origin","option1":"Short","option2":"Red","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Red \/ Origin","public_title":"Short \/ Red \/ Origin","options":["Short","Red","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984115978580,"title":"Short \/ Red \/ Origin + Fork","option1":"Short","option2":"Red","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Red \/ Origin + Fork","public_title":"Short \/ Red \/ Origin + Fork","options":["Short","Red","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116011348,"title":"Short \/ Red \/ Full build","option1":"Short","option2":"Red","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Red \/ Full build","public_title":"Short \/ Red \/ Full build","options":["Short","Red","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116044116,"title":"Short \/ Grey \/ Origin","option1":"Short","option2":"Grey","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Grey \/ Origin","public_title":"Short \/ Grey \/ Origin","options":["Short","Grey","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116076884,"title":"Short \/ Grey \/ Origin + Fork","option1":"Short","option2":"Grey","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Grey \/ Origin + Fork","public_title":"Short \/ Grey \/ Origin + Fork","options":["Short","Grey","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116109652,"title":"Short \/ Grey \/ Full build","option1":"Short","option2":"Grey","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Short \/ Grey \/ Full build","public_title":"Short \/ Grey \/ Full build","options":["Short","Grey","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116142420,"title":"Medium \/ Raw \/ Origin","option1":"Medium","option2":"Raw","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Raw \/ Origin","public_title":"Medium \/ Raw \/ Origin","options":["Medium","Raw","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116175188,"title":"Medium \/ Raw \/ Origin + Fork","option1":"Medium","option2":"Raw","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Raw \/ Origin + Fork","public_title":"Medium \/ Raw \/ Origin + Fork","options":["Medium","Raw","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116207956,"title":"Medium \/ Raw \/ Full build","option1":"Medium","option2":"Raw","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Raw \/ Full build","public_title":"Medium \/ Raw \/ Full build","options":["Medium","Raw","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116240724,"title":"Medium \/ Red \/ Origin","option1":"Medium","option2":"Red","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Red \/ Origin","public_title":"Medium \/ Red \/ Origin","options":["Medium","Red","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116273492,"title":"Medium \/ Red \/ Origin + Fork","option1":"Medium","option2":"Red","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Red \/ Origin + Fork","public_title":"Medium \/ Red \/ Origin + Fork","options":["Medium","Red","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116306260,"title":"Medium \/ Red \/ Full build","option1":"Medium","option2":"Red","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Red \/ Full build","public_title":"Medium \/ Red \/ Full build","options":["Medium","Red","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116339028,"title":"Medium \/ Grey \/ Origin","option1":"Medium","option2":"Grey","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Grey \/ Origin","public_title":"Medium \/ Grey \/ Origin","options":["Medium","Grey","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116371796,"title":"Medium \/ Grey \/ Origin + Fork","option1":"Medium","option2":"Grey","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Grey \/ Origin + Fork","public_title":"Medium \/ Grey \/ Origin + Fork","options":["Medium","Grey","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116404564,"title":"Medium \/ Grey \/ Full build","option1":"Medium","option2":"Grey","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Medium \/ Grey \/ Full build","public_title":"Medium \/ Grey \/ Full build","options":["Medium","Grey","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116437332,"title":"Long \/ Raw \/ Origin","option1":"Long","option2":"Raw","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Raw \/ Origin","public_title":"Long \/ Raw \/ Origin","options":["Long","Raw","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116470100,"title":"Long \/ Raw \/ Origin + Fork","option1":"Long","option2":"Raw","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Raw \/ Origin + Fork","public_title":"Long \/ Raw \/ Origin + Fork","options":["Long","Raw","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116502868,"title":"Long \/ Raw \/ Full build","option1":"Long","option2":"Raw","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Raw \/ Full build","public_title":"Long \/ Raw \/ Full build","options":["Long","Raw","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116535636,"title":"Long \/ Red \/ Origin","option1":"Long","option2":"Red","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Red \/ Origin","public_title":"Long \/ Red \/ Origin","options":["Long","Red","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116568404,"title":"Long \/ Red \/ Origin + Fork","option1":"Long","option2":"Red","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Red \/ Origin + Fork","public_title":"Long \/ Red \/ Origin + Fork","options":["Long","Red","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116601172,"title":"Long \/ Red \/ Full build","option1":"Long","option2":"Red","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Red \/ Full build","public_title":"Long \/ Red \/ Full build","options":["Long","Red","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116633940,"title":"Long \/ Grey \/ Origin","option1":"Long","option2":"Grey","option3":"Origin","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Grey \/ Origin","public_title":"Long \/ Grey \/ Origin","options":["Long","Grey","Origin"],"price":495000,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116666708,"title":"Long \/ Grey \/ Origin + Fork","option1":"Long","option2":"Grey","option3":"Origin + Fork","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Grey \/ Origin + Fork","public_title":"Long \/ Grey \/ Origin + Fork","options":["Long","Grey","Origin + Fork"],"price":677500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46984116699476,"title":"Long \/ Grey \/ Full build","option1":"Long","option2":"Grey","option3":"Full build","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"G3 DOWNHILL - Long \/ Grey \/ Full build","public_title":"Long \/ Grey \/ Full build","options":["Long","Grey","Full build"],"price":829500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

€395,00

Tax included.

See info here.

.THE PHYSICS

BEHIND THE PERFORMANCE

At the heart of all our bikes is the concept of Low Unsprung Mass and the G3 leverages this to its full extent.

Unsprung Mass is the mass of every component unsupported by the bike's suspension that needs to move/rotate when the wheel hits a bump; wheel, tyre, some of the rear stays, brakes, and of course cluster and derailleurs. When the rear wheel hits an obstacle we want it to react in a way that minimises the disturbance to the chassis and rider.

Thus maximising grip, minimising rider fatigue and reducing resistance to motion. The lower the unsprung mass the less disturbance is transferred to the chassis and rider. This results in more grip, the ability to hold higher speeds through rough sections, less fatigue and a more stable ride.Removing the weight of the cluster and derailleur and moving this to a low centralised position in the gearbox has a significant impact on unsprung weight and suspension performance.

Some may argue the weight of a modern cluster and derailleur is relatively low, but as a ratio to the other unsprung components, a cluster and derailleur can easily make up 15% of the overall unsprung mass of a traditional bike.

In a world of incremental gains, a 15% improvement in unsprung mass and suspension performance is huge.
